Factory For Automatic Rotary Library Dehumidifier - ZCR series Desiccant Dehumidifier – Dry Air

Short Description:

ZCR series Desiccant Dehumidifier can dehumidify high relative humidity air with low temperature (60 ℃) regeneration air and achieved greater dehumidification than ZCB-D/Z series with high temperature (130 ℃) which apply conventional silica gel wheel.Waste heat from refrigeration process is used as a reactivation source of desiccant wheel of ZCB-R series desiccant dehumidifier, , resulting in an extremely energy efficient system.       Technical Parameter ZCR SERIES DESICCANT DEHUM...


Product Detail

Product Tags

Related Video

Feedback (2)

Gaining purchaser gratification is our company's aim eternally. We're going to make great initiatives to create new and top-quality products, satisfy your exclusive prerequisites and supply you with pre-sale, on-sale and after-sale solutions for 10kg/h Dehumidifier, China Desiccant Dehumidification System, Rotary Type Dehumidifiers, We're prepared to present you with the most effective ideas over the designs of the orders in a qualified way for those who need. While in the meantime, we continue to keep on producing new technologies and building new designs so as to help make you ahead from the line of this small business.
Factory For Automatic Rotary Library Dehumidifier - ZCR series Desiccant Dehumidifier – Dry Air Detail:

ZCR series Desiccant Dehumidifier can dehumidify high relative humidity air with low temperature (60 ℃) regeneration air and achieved greater dehumidification than ZCB-D/Z series with high temperature (130 ℃) which apply conventional silica gel wheel.Waste heat from refrigeration process is used as a reactivation source of desiccant wheel of ZCB-R series desiccant dehumidifier, , resulting in an extremely energy efficient system.







Technical Parameter

ZCR SERIES DESICCANT DEHUMIDIFIER WITH LOW REACTIVATION TEMPERATURE

   Model No.

Process air volume

Regeneration air volume CMH

Process fan motor(kw)

Reactivation fan motor(kw)

Required reactivation power(kw)

hot water at 65° for reactivation (ton/hour)

Back-up reactivation heating power(kw)

CMH

ZCR-R20-2000

2000

2000

3.00

1.10

20

1.7

4

ZCR-R30-3000

3000

3000

3.00

1.50

30

2.6

6

ZCR-R40-4000

4000

4000

4.00

2.20

40

3.4

8

ZCR-R50-5000

5000

5000

4.00

2.20

50

4.3

10

ZCR-R60-6000

6000

6000

5.50

3.00

60

5.1

12

ZCR-R80-8000

8000

8000

7.50

4.00

80

6.8

15

ZCR-R100-10000

10000

10000

11.00

5.50

100

8.5

20

ZCR-R120-12000

12000

12000

11.00

5.50

120

10.2

24

ZCR-R150-15000

15000

15000

15.00

7.50

150

12.8

30

ZCR-R200-20000

20000

20000

15.00

11.00

200

17

40

1.Make-up outside air :10~30% of supply air;2.controlled humidity 15~50% RH

Product detail pictures:

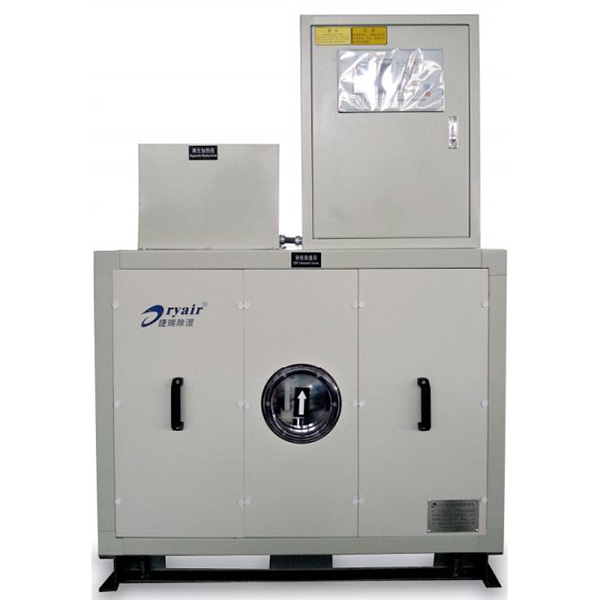

Factory For Automatic Rotary Library Dehumidifier - ZCR series Desiccant Dehumidifier – Dry Air detail pictures
