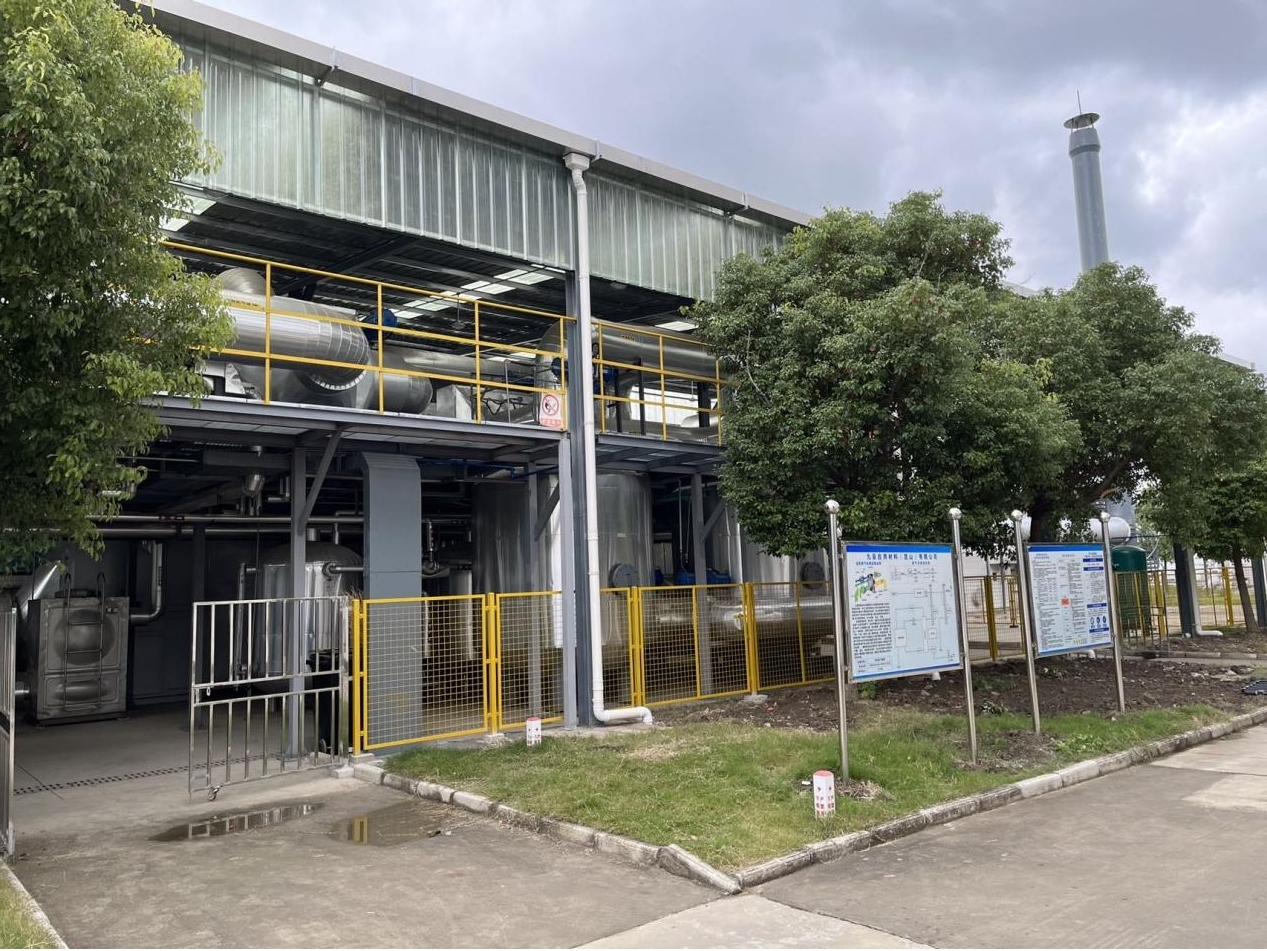

ZJEN SERIES VOC Abatement System

Short Description:

Product advantages of VOC Concentrating rotor+Molecular Sieve rotor system： 1. Processing efficiency of molecular sieve rotor is up to 95% and life span is up to 10 years. 2. High economic efficiency:high purity of the recovery solvent and it can be directly used in the production, 3.High safety, it can make up the deficiency of explosiveness of RTO equipment and in flammabilityof active carbon filter unit at high temperature. High concentration exhaust：Deep condensation+RTO(Regenerative ...

FOB Price: US $0.01Million - 0.2Million / Piece

Min.Order Quantity: 1 Piece

Supply Ability: 100 Piece/Pieces per Month

Port: Ningbo or Shanghai

Payment Terms: T/T

Send email to us Download as PDF

Product Detail

Product Tags

Product advantages of VOC Concentrating rotor+Molecular Sieve rotor system：

1. Processing efficiency of molecular sieve rotor is up to 95% and life span is up to 10 years.

2. High economic efficiency:high purity of the recovery solvent and it can be directly used in the production,

3.High safety, it can make up the deficiency of explosiveness of RTO equipment and in flammabilityof active carbon filter unit at high temperature.

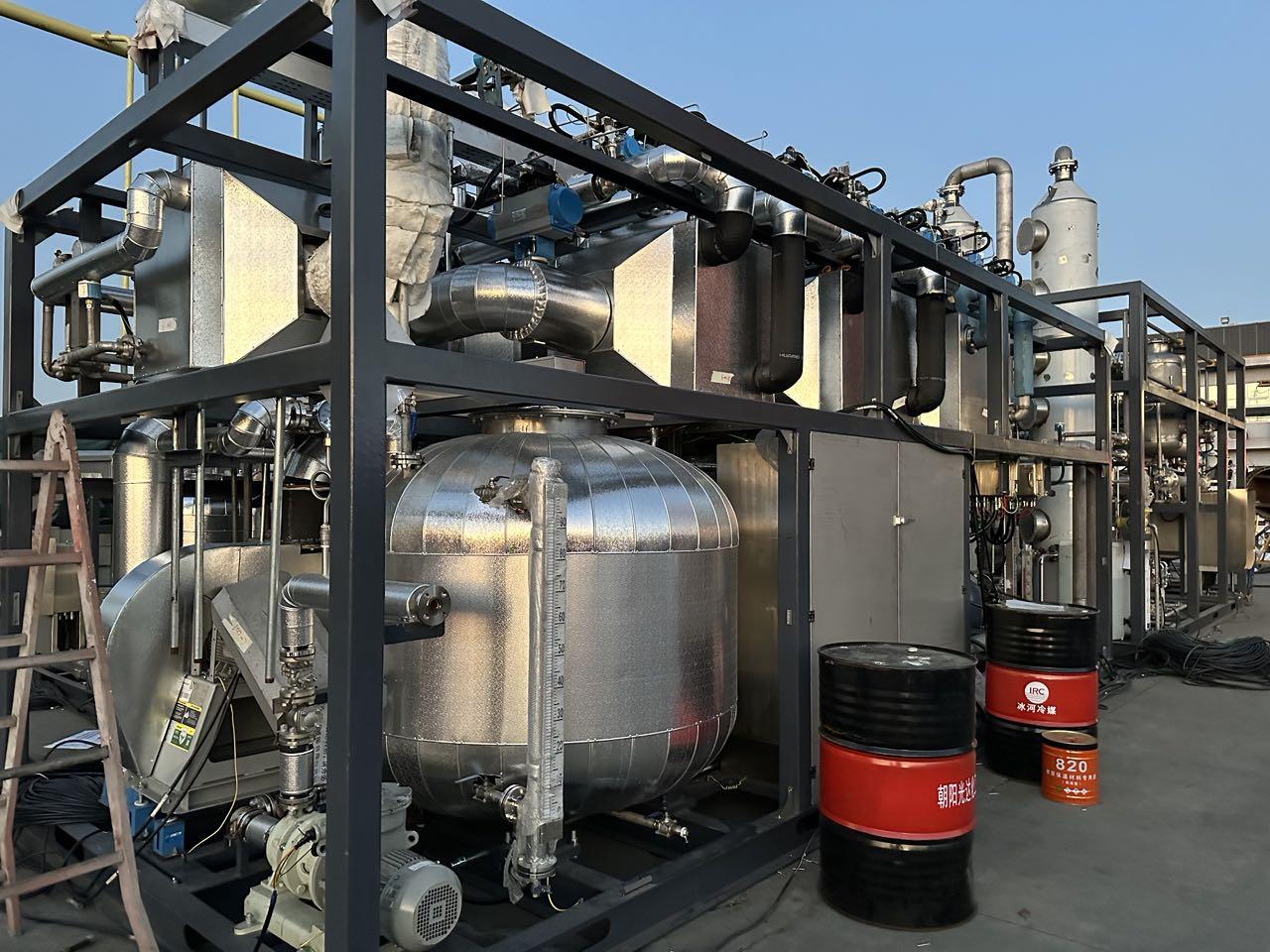

High concentration exhaust：Deep condensation+RTO(Regenerative Thermal Oxidizer)/CO

Working Principle：

High concentration exhaust is deeply cooled down to -20℃ to -75℃so that the organic waste gas is condensed into a liquid state and recycled. The pollutant in VOC laden air stream is destroyed and converted into carbon dioxide, heat and water at 800 ℃ by a RTO burner to meet emission standards.

Model	Handling capacity (m³)	Dimensions (m)	Net weight (t)	Rated power （kw)	Recovery rate(%)
JEN-RH-200-L35E	100-300	53.23.2	10-15	15	≥95
JEN-RH-400-L35E	300-500	73.23.2	15-20	30	≥95
JEN-RH-600-L35E	500-700	103.23.2	25-30	45	≥95
JEN-RH-800-L35E	700-900	103.23.3	25-30	60	≥95
Note	Discharge to meet local VOC emission standards Reactivation source is steam,required steam pressure is 0.6Mpa

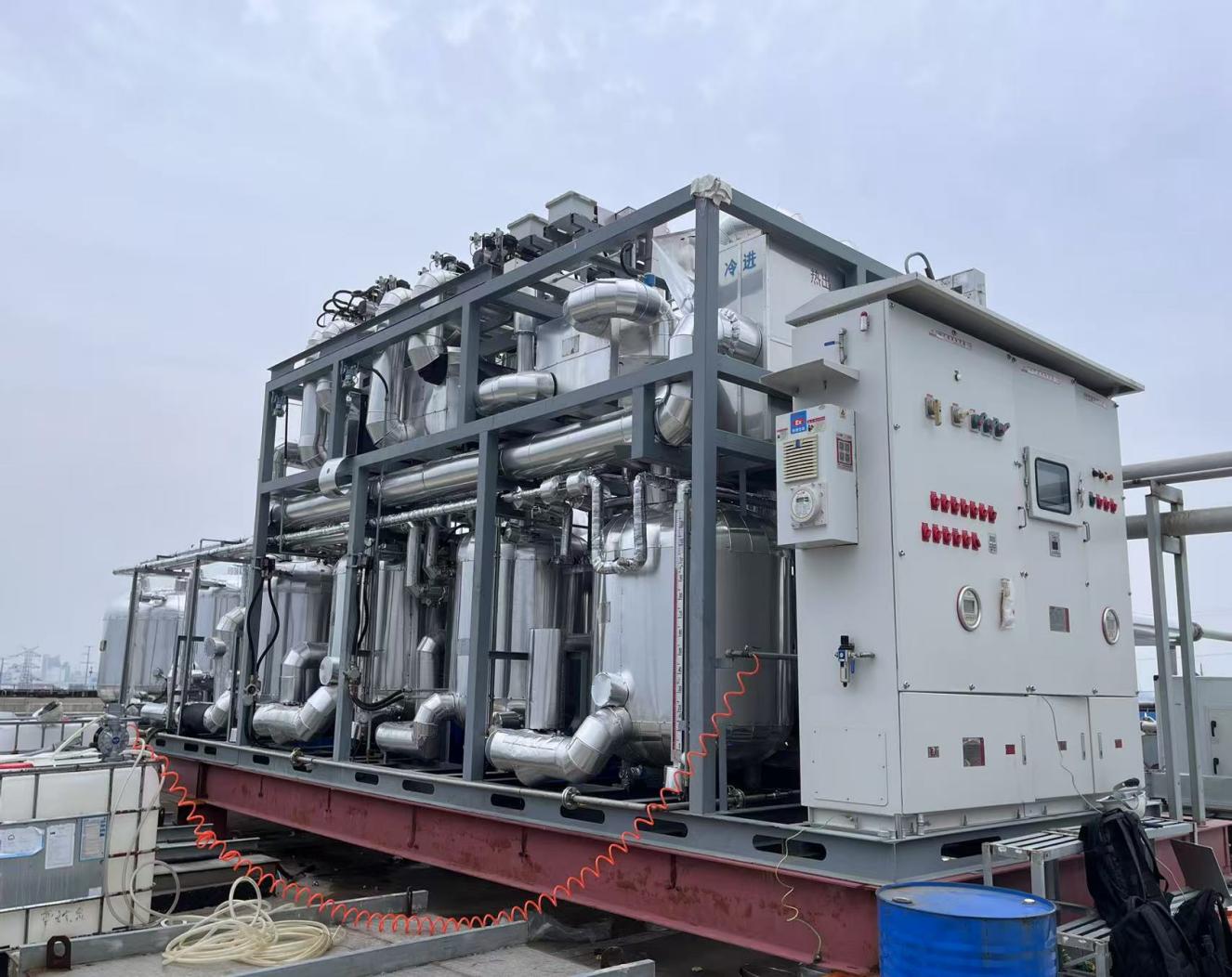

Large volume, low concentration exhaust: VOC Concentrating rotor+Molecular Sieve rotor

Working Principle ：

Large volume, low concentration exhaust is cooled down by pre-cooler and further processed by a VOC concentrating rotor.The purified air is discharged to the atmosphere through a main exhaust fan.

The moisture in the concentrated and desorbed exhaust gas is removed by cooling coils and a molecular sieve rotor, the temperature of the exhaust air is cooled down by a heat exchanger and condenser. The condensed air directed to the low-temperature side and recycled as reactivation air of the molecular sieve rotor.

Model	Handling capacity (m³)	Dimensions (m)	Net weight (t)	Installed power （kw)	Removal rate (%)
ZJEN-H-8000-L35E	7000-9000	664	10	75	≥97
ZJEN-H-15000-L35E	14000-16000	884	11	100	≥97
ZJEN-H-20000-L35E	18000-22000	884	12	150	≥97
ZJEN-H-25000-L35E	23000-27000	1296	13	180	≥97
ZJEN-H-30000-L35E	28000-32000	1396	14	225	≥97
ZJEN-H-40000-L35E	38000-43000	14106	15	300	≥97
ZJEN-H-50000-L35E	48000-52000	14106	16	375	≥97
Note	Discharge to meet the local VOC emission standards Reactivation source is steam,required steam pressure is 0.6Mpa

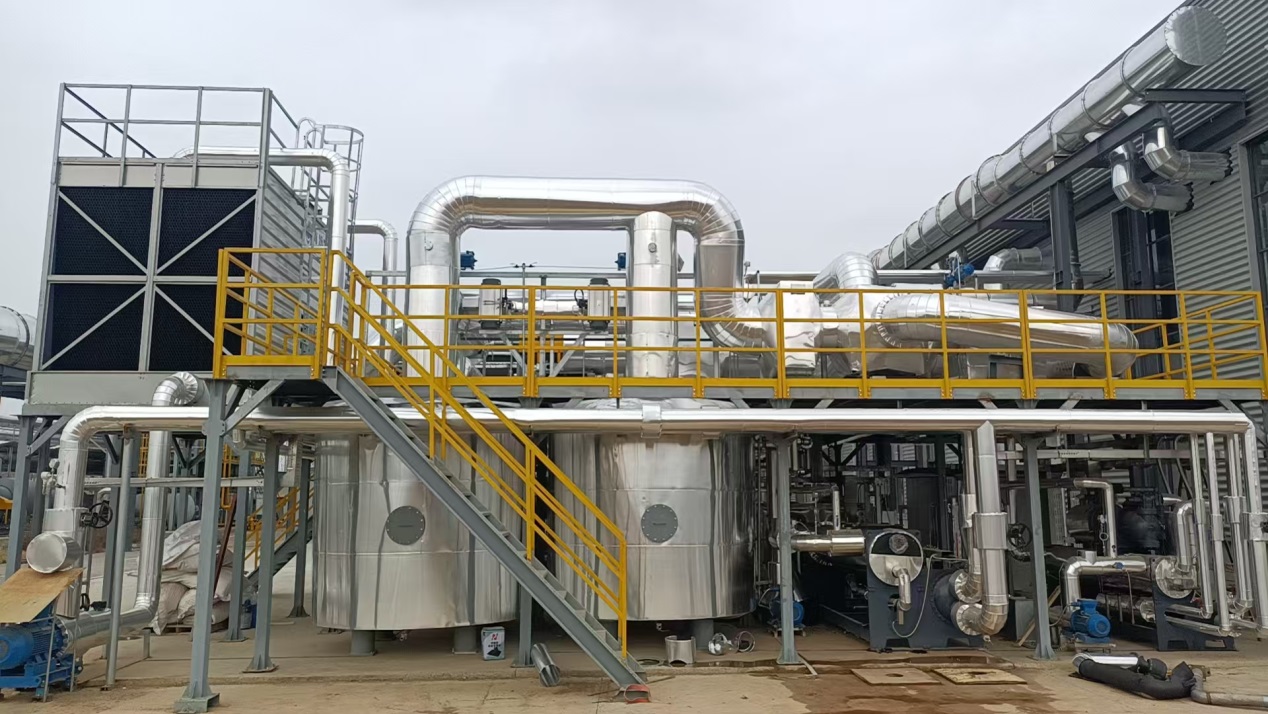

Large volume, medium concentration exhaust :Active Carbon filter+VOC Concentrating rotor

Principle introduction：

Exhaust gas with concentration of 2200mg/m³ is processed by GAC activated carbon filter device and a zeolite VOC adsorption rotor where it purified to 70mg/m³^.

The solvent in the activated carbon filter device is condensed and recycled.

Model	Handling capacity (m³)	Dimensions (m)	Net weight (ton)	Rated power （kw)	Moisture content (%)
ZJEN-H-10000-E	6000-15000	774	20	50	≤1
ZJEN-H-20000-E	16000-25000	994	22	100	≤1
ZJEN-H-30000-E	26000-35000	1084	24	150	≤1
ZJEN-H-40000-E	36000-45000	1084	26	200	≤1
Remark	1.Emission concentration ≤ 70mg / m³ to meet local emission standards2.Reactivation source is 180℃ heat conduction oil.
