OEM Factory for Desiccant-Based Humidity Control - ZCJ series Compact Desiccant Dehumidifier – Dry Air

Short Description:

The ZCJ series Compact Desiccant Dehumidifier is specially designed for ventilation moisture removal of bank vaults, archives, storerooms, warehouses, military, and other treasure/valuable storage Our system adopts advanced desiccant rotor technology which makes the dehumidification much more effective. What’s more, the post cooling coil is optional to maintain the space relative humidity20-40%, and temperature 20-25° C. Because of different standards between different counties, our pro...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

The organization keeps on the procedure concept "scientific management, high quality and efficiency primacy, purchaser supreme for Desiccant Dehumidifier, Oem Odm Dehumidifier, Dehumidifier Fan Motor, We sincerely welcome friends from all around the globe to cooperate with us within the foundation of long-term mutual benefits.

OEM Factory for Desiccant-Based Humidity Control - ZCJ series Compact Desiccant Dehumidifier – Dry Air Detail:

The ZCJ series Compact Desiccant Dehumidifier is specially designed for ventilation moisture removal of bank vaults, archives, storerooms, warehouses, military, and other treasure/valuable storage

Our system adopts advanced desiccant rotor technology which makes the dehumidification much more effective. What’s more, the post cooling coil is optional to maintain the space relative humidity20-40%, and temperature 20-25° C. Because of different standards between different counties, our professionals would take all factors into design of units, such as safety of staff, equipment and property.

Advantage:

1. Compact size for installations in small spaces

2. Prevents mold and mildew

3. Adopt efficient desiccant rotor

4. Low maintenance.

5. Long life span

Applications：(1)

	ZCJ Series Compact Desiccant Dehumidifier
Technical Parameters
Model			ZCJ-200	ZCJ-400	ZCJ-600	ZCJ-1000	ZCJ-1500
Process air volume		m³/h	200	400	600	1000	1500
Regeneration Air Volume		m³/h	70	135	200	350	500
Dehumidifying capacity		kg/h	1	2.8	4.3	7.2	10.8
Total power		kw	1.72	4.45	6.65	12	16.4
Process air inlet and outlet		mm*mm	120*120	160*160	200*160	250*160	320*320
Regeneration air inlet		mm*mm	120*120	120*120	160*160	160*160	160*160
Regeneration air outlet		mm*mm	Φ100	Φ100	Φ100	Φ150	160*160
Size	Length	mm	450	500	550	650	750
	Width	mm	450	500	550	650	750
	Height	mm	850	1250	1350	1750	1850
Power			Single-phase 220V 50HZ		Three-phase 220V 50HZ
Unit weight		kg	40	80	100	250	350

Hangzhou DryAir Advantages:

1. Supplier for Military Projects in China

Qualified supplier for providing dehumidifying equipment for National Projects such as Satellite Launching base,Submarine compartment,Aircraft cabin,Minesweeper Sonar Storehouse,Positive and negative ions collider, Nuclear Power Station,missile base.

2.The founder of rotor Dehumidification in China.

We initiatively provide turn key Dry Room for Lithium Industries in China and has been devoted to Turn key solution which include research, design,manufacturing,installation, start-up, after-service of dehumidifying products since 1972.

3.Strong technical force

The unique company which have the certificate of GJB national army systems and ISO9001 systems among all the dehumidifier company of China.

The unique company which have research and development department and get the national research grants in all the dehumidifier company of China.

The national hi-tech enterprise.

The national innovation foundation .

4.Facility,Processing Machines and Testing Room

R&D center

Manufacturing Center

5.Largest Market Share in Domestic dehumidifying market

With advanced technology, perfect processing, good management, Dryair’s business develops very fast in lithium battery industry in recently years, we provide more than 300 sets low dew point dehumidifiers for lithium battery industry every year and is predominant in domestic dehumidifier market and our sales value is far ahead of other competitors

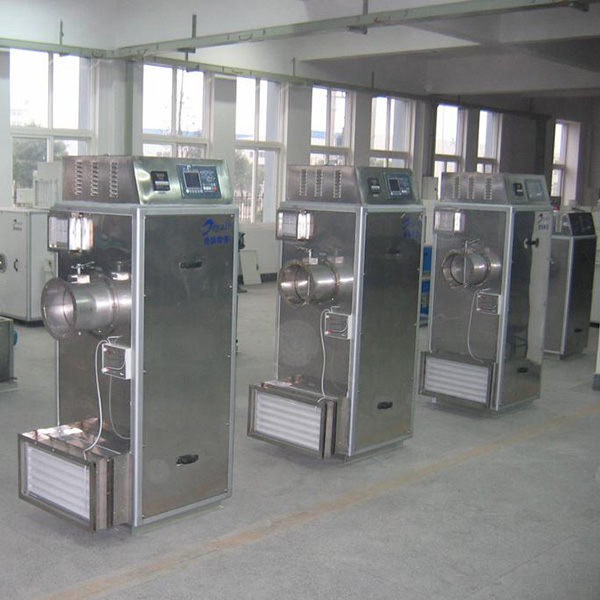

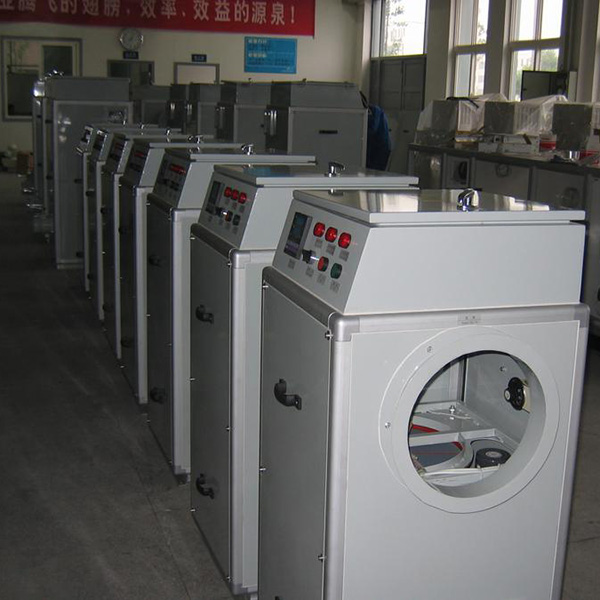

Product detail pictures:
