ZCB SERIES Combined Desiccant Dehumidifiers

Short Description:

ZCB SERIES Combined Desiccant Dehumidifiers Widely used in glass, pharmaceutical, chemical, food, rubber, and fertilizer manufacturing; any process/material affected by moisture. ZCB series Combined Desiccant Dehumidifiers incorporate many advanced features including an innovative double wall construction structure with superior air tightness and good insulation performance. Surface options of panels including galvanized steel, aluminum alloy, stainless steel or any combination permit an effe...

FOB Price: US $0.01Million - 0.2Million / Piece

Min.Order Quantity: 1 Piece

Supply Ability: 100 Piece/Pieces per Month

Port: Ningbo or Shanghai

Payment Terms: T/T

Send email to us Download as PDF

Product Detail

Product Tags

ZCB SERIES Combined Desiccant Dehumidifiers Widely used in glass, pharmaceutical, chemical, food, rubber, and fertilizer manufacturing; any process/material affected by moisture.

ZCB series Combined Desiccant Dehumidifiers incorporate many advanced features including an innovative double wall construction structure with superior air tightness and good insulation performance. Surface options of panels including galvanized steel, aluminum alloy, stainless steel or any combination permit an effective choice for all kinds of operational environments.

ZCB series Combined Desiccant Dehumidifiers are especially suitable for manufacturing process with humidity requirement from 10% to 40% at normal temperature.

ZCB series Combined Desiccant Dehumidifiers can be customized to meet almost any requirements.Standard options of this series units include desiccant wheel, process fan,reactivation fan, reactivation heater, reactivation filter, pre-cooler, blend-cooler, post-cooler, heating coil for winter, G4 pre-filter ,medium filter and optional HEPA(high efficiency particulate air),air cooled or water cooled condensing unit ,chilled water piping, air duct system,PLC control system which can provide full temperature and humidity controls.

Features:

Heat recovery and energy saving technology

Silica gel desiccant rotor with high dehumidifying efficiency

Reactivation heating mode: steam or electrical

Anti cold bridge cabinet

Modular assembly, easy for installation

Main components:

desiccant wheel, reactivation fan, reactivation heater, reactivation filter, pre-cooler, medium-cooler, rear-cooler, heating coil for winter, pre-filter ,medium filter and HEPA(high efficiency particulate air) and cabinet.

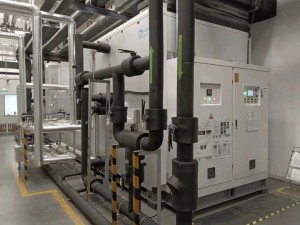

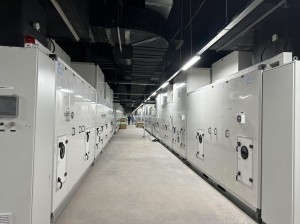

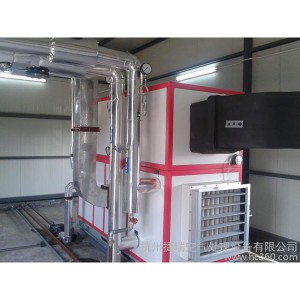

Applications：(1).(2).(3).(4)

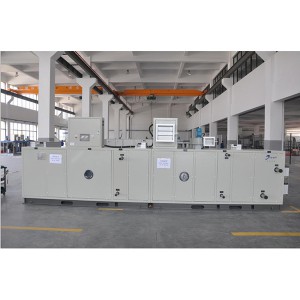

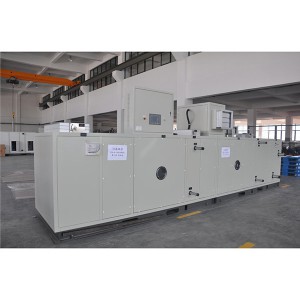

ZCB Series Combined Desiccant Dehumidifiers
Technical parameters
Model&Parameters				ZCB-D/Z- 2000	ZCB-D/Z- 3000	ZCB-D/Z- 4000	ZCB-D/Z- 5000	ZCB-D/Z- 6000	ZCB-D/Z- 8000	ZCB-D/Z- 10000	ZCB-D/Z- 12000	ZCB-D/Z-15000	ZCB-D/Z-20000	ZCB-D/Z-25000
Process air volume			m3/h	2000	3000	4000	5000	6000	8000	10000	12000	15000	20000	25000
External Static Pressure			Pa	≥300
Regeneration air volume			m3/h	667	1000	1330	1670	2000	2670	3330	4000	5000	6670	8350
Regeneration power		steam	㎏/h	40	60	80	120	150	200	250	300	400	500	600
		steam	diameter	DN20	DN20	DN25	DN25	DN25	DN25	DN25	DN25	DN25	DN32	DN32
		Electrical	kW	20	30	40	50	60	80	100	120	150	200	250
Cooling water			°C	≤7
Quantity			t/h	5	10	12	15	20	25	30	35	45	60	75
Quantity			diameter	DN40	DN40	DN40	DN50	DN50	DN50	DN65	DN65	DN65	DN80	DN80
Rated power	Steam		kw	3.05	4.2	5.2	7.1	7.1	9.8	13.3	14.2	20.7	24.2	29.7
Rated power	Electrical		kw	23.05	34.2	45.2	57.1	67.1	89.8	113.3	134.2	170.7	224.2	279.7
Unit Weight			㎏	1150	1450	1600	1800	2000	2200	2400	2700	2700	3000	3300

ZCB Series Combined Desiccant Dehumidifier Part Diemensions
Model&Parameters				ZCB-D/Z- 2000	ZCB-D/Z- 3000	ZCB-D/Z- 4000	ZCB-D/Z- 5000	ZCB-D/Z- 6000	ZCB-D/Z- 8000	ZCB-D/Z- 10000	ZCB-D/Z- 12000	ZCB-D/Z-15000	ZCB-D/Z-20000	ZCB-D/Z-25000
Section Diemensions		UxP		800×700	900×800	1000×850	1100×900	1200×1000	1300×1050	1400×1150	1500×1300	1700×1450	1900×1650	2100×1750
Inlet air filter section		A		450	450	450	450	450	450	450	450	450	450	450
Pre-cooling section		B		750	750	750	900	900	900	900	900	900	900	900
Rotor section	section size	UxS		800×1150	900×1300	1000×1400	1100×1500	1200×1600	1300×1700	1400×1850	1500×2000	1700×2200	1900×2400	2100×2600
Rotor section	C			1050	1050	1050	1200	1200	1200	1200	1200	1350	1350	1500
After cooling section			D	600	600	600	750	750	750	750	750	750	750	750
Supply fan section			E	900	900	900	1050	1050	1050	1050	1200	1200	1200	1350
Average air section			F	450	450	450	450	450	600	600	600	600	600	600
Mid-filter section			G	600	600	600	600	600	600	600	600	600	600	600
Total length			J	5100	5100	5100	5700	5700	5850	5850	6000	6150	6150	6450
Fresh air section			㎜	250×200	320×250	400×250	500×250	500×320	630×320	800×320	800×400	1000×400	1000×500	1250×500
Return air section			㎜	250×200	320×250	400×250	500×250	500×320	630×320	800×320	800×400	1000×400	1000×500	1250×500
Process outlet air section			㎜	400×250	500×320	630×320	800×320	800×400	800×500	1000×500	1000×630	1250×630	1250×800	1600×800
Regeneration air inlet section			㎜	400×300	550×350	550×400	550×450	650×450	750×500	750×550	800×500	700×550	850×550	850×650
Regeneration air outlet section			㎜	160×125	208×162	208×162	233×183	233×183	260×228	262×204	262204	302×234	332×257	487×340

Hangzhou DryAir Advantages:

1. Supplier for Military Projects in China

Qualified supplier for providing dehumidifying equipment for National Projects such as Satellite Launching base,Submarine compartment,Aircraft cabin,Minesweeper Sonar Storehouse,Positive and negative ions collider, Nuclear Power Station,missile base.

2.The founder of rotor Dehumidification in China.

We initiatively provide turn key Dry Room for Lithium Industries in China and has been devoted to Turn key solution which include research, design,manufacturing,installation, start-up, after-service of dehumidifying products since 1972.

3.Strong technical force

The unique company which have the certificate of GJB national army systems and ISO9001 systems among all the dehumidifier company of China.

The unique company which have research and development department and get the national research grants in all the dehumidifier company of China.

The national hi-tech enterprise.

The national innovation foundation .

4.Facility,Processing Machines and Testing Room

R&D center

Manufacturing Center

5.Largest Market Share in Domestic dehumidifying market

With advanced technology, perfect processing, good management, Dryair’s business develops very fast in lithium battery industry in recently years, we provide more than 300 sets low dew point dehumidifiers for lithium battery industry every year and is predominant in domestic dehumidifier market and our sales value is far ahead of other competitors
