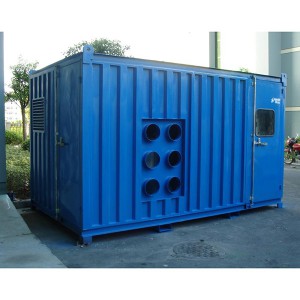

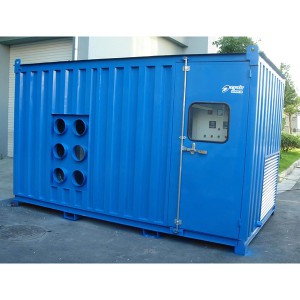

DRYAIR ZCLY-SERIES Four-Season Dehumidifiers: Specially designed for temporary sites, maintenance events, special painting operations, bridge and steel frame coating, and can be used outdoors all seasons of the year.
DRYAIR ZCLY-Series portable Four-Season dehumidifiers utilize a combination of cooling method technology and honeycomb rotor dehumidification. The dehumidification relies on internal cooling while the desiccant rotor further aids drying in summer, combined dehumidification in transition season, and drying of the rotor is the key in winter. The internal refrigerating systems of the ZCLY-Series dehumidifiers are air-cooled. The air-cooled fan adopts a screw compressor to save power and improve operating stability of the unit. The dried air is pre-processed by the evaporator, and then further dried by the rotor according to required conditions.
ZCLY Series portable Four-Season dehumidifiers processed air can reach required target of 20-32 degrees and less than or equal to 45% relative humidity, while ambient conditions are -5 -40 degrees and 50-99% relative humidity before processing. The condensers and evaporator of the units are air-cooled copper tubing with aluminum fin; The four operating status’ available to customers are General Refrigerating, Combination Drying of the Rotor and Wet Cooling, General Drying of the Rotor, and Drying of the Rotor and Heating.
ZCLY-Series Dehumidifiers use automated PLC programing operation meeting every status request.
|
Technical Parameters |
||||
| Item Model |
ZCLY-6000 |
ZCLY-10000 |
ZCLY-15000 |
ZCLY-18000 |
|
Process air volume m³/h |
600 |
10000 |
12000 |
18000 |
|
Compressor power kw |
30 |
50 |
70 |
90 |
|
Supply fan power kw |
7.5 |
11 |
18.5 |
22 |
|
Regenration heater power kw |
60 |
99 |
120 |
180 |
|
Refrigeration capacity kcal/h |
9×104 |
13×104 |
22×104 |
26×104 |
|
Total power kw |
120 |
175 |
288 |
370 |
|
Size(L×W×H)mm |
4000*2000*28000 |
4270*2240*3100 |
5100*2240*3100 |
6500*2240*3100 |
|
Inlet air prarmeters |
T:5-40℃ RH ：50-99% |
|||
|
Outlet air prarmeters |
T:20-32℃ RH≤45% |
|||
|
Supply air overbottom pressure |
>1000Pa |
|||
|
Master Control Program |
Total Refrigeration、Refrigeration&Rotor、Rotor&Heater |
|||
|
Power |
Three-phase, 380V, 50HZ |
|||
Hangzhou DryAir Advantages:
1. Supplier for Military Projects in China
Qualified supplier for providing dehumidifying equipment for National Projects such as Satellite Launching base,Submarine compartment,Aircraft cabin,Minesweeper Sonar Storehouse,Positive and negative ions collider, Nuclear Power Station,missile base.
2.The founder of rotor Dehumidification in China.
We initiatively provide turn key Dry Room for Lithium Industries in China and has been devoted to Turn key solution which include research, design,manufacturing,installation, start-up, after-service of dehumidifying products since 1972.
3.Strong technical force
The unique company which have the certificate of GJB national army systems and ISO9001 systems among all the dehumidifier company of China.
The unique company which have research and development department and get the national research grants in all the dehumidifier company of China.
The national hi-tech enterprise.
The national innovation foundation .
4.Facility,Processing Machines and Testing Room
R&D center
Manufacturing Center
5.Largest Market Share in Domestic dehumidifying market
With advanced technology, perfect processing, good management, Dryair’s business develops very fast in lithium battery industry in recently years, we provide more than 300 sets low dew point dehumidifiers for lithium battery industry every year and is predominant in domestic dehumidifier market and our sales value is far ahead of other competitors
