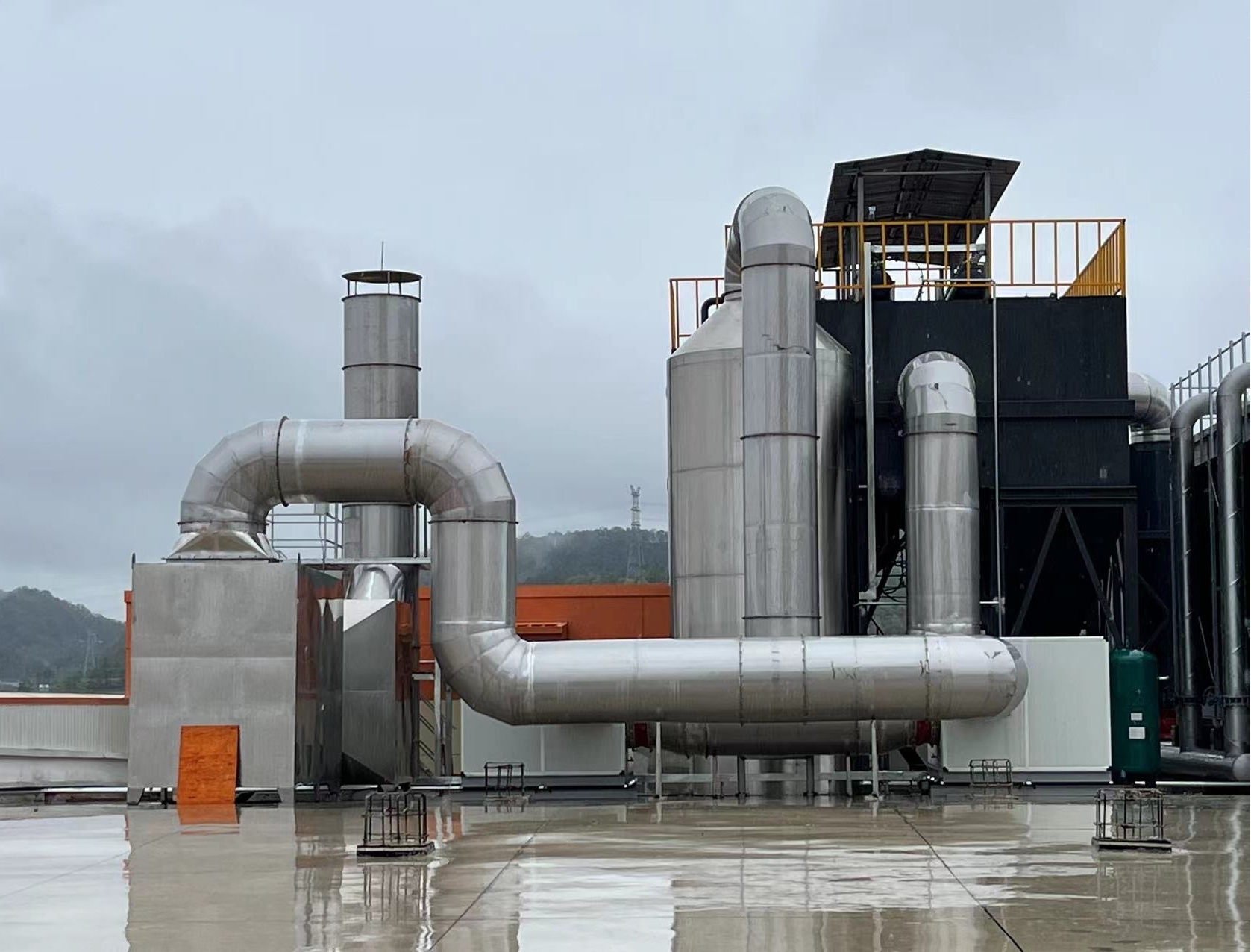

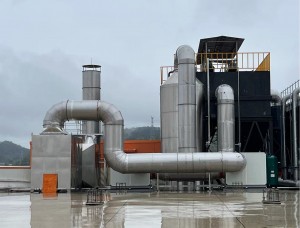

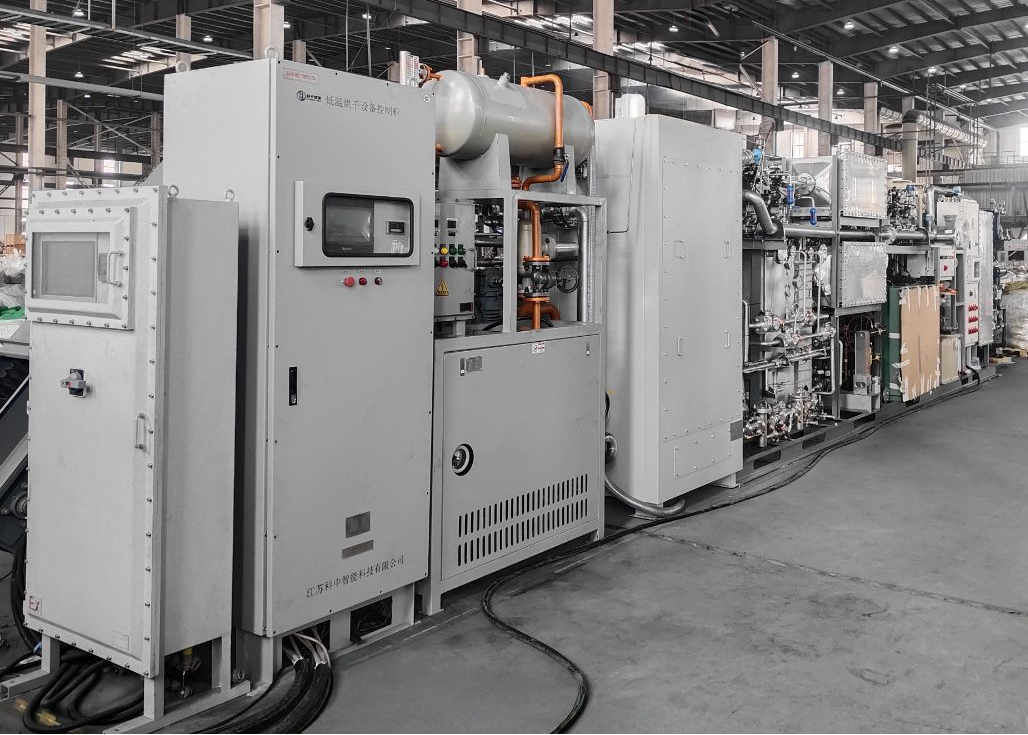

This system is designed to recycle NMP from the lithium-ion secondary battery electrodes manufacturing process. The hot solvent laden air from the ovens is drawn into DRYAIR’s NMP Recovery System where the NMP is recovered by a combination of condensation and adsorption.The cleaned solvent laden air is available for return to the process or discharge to atmosphere as per customer requirement.NMP stands for N-Methyl-2-Pyrrolidone,it is an expensive solvent In addition, the recovery and recycling of NMP can reduce running costs for lithium battery factories as well as avoiding air pollution.
Features :
97% recovery rate
NMP discharge: 12ppm
Conentration of recovered NMP Solvent:85%
Functional section：
Heat Ex-changer,Cooler
VOC concentrator,Process fan
Solvent Storage tank(optional)
Siemens PLC
|
ZJRH Series NMP Recovery System |
||||||
|
Item |
ZJRH-D30-9000 |
ZJRH-D50-15000 |
ZJRH-D60-20000 |
ZJRH-D75-25000 |
ZJRH-D90-30000 |
ZJRH-D120-40000 |
|
Process air volume CMH |
9000 |
15000 |
20000 |
25000 |
30000 |
40000 |
|
NMP concentration in Discharged exhaust air |
≤50mg/m³ |
|||||
|
Concentration of Recovered NMP solvent |
≥85% |
|||||
|
NMP recovery rate |
≥97% |
|||||
|
Heat exchanger |
efficiency≥65% |
|||||
|
Cooler#1 kw（≤32℃ chilling water） |
38 |
63 |
84 |
105 |
126 |
168 |
|
Cooler#2 kw（≤10℃ chilled water） |
33 |
55.8 |
74 |
93 |
116 |
149 |
|
Process fan #1 KW |
5.5 |
11 |
15 |
15 |
18.5 |
22 |
|
Process fan #2 KW |
3 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
Reactivation fan motor KW |
2.2 |
2.2 |
3 |
3 |
4 |
4 |
|
Reactivation heate power KW |
12 |
18 |
22.5 |
27 |
36 |
48 |
|
Rated power KW |
22.7 |
36.7 |
48 |
52.5 |
69.5 |
89 |
